In this tutorial I will explain how to convert a photo to a pattern, by using the open source software Gimp (Photoshop) and Inkscape (Illustrator).
|Step 1: Choose a picture.|

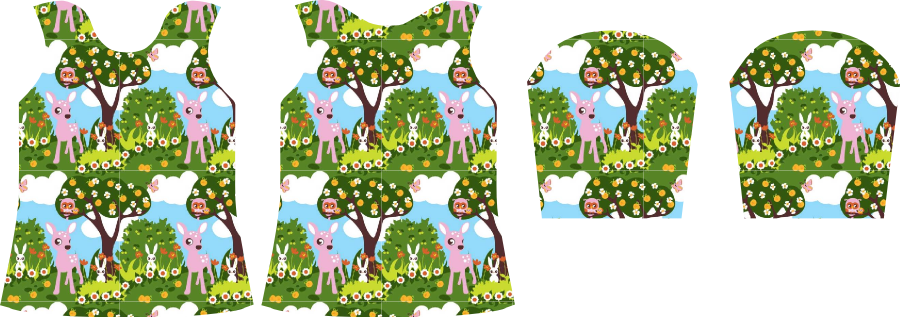

Choose a picture.
|Step 2: Cut out your object with the Lasso Tool.|
Open your image in Gimp (Photoshop). Change the transparency of the layer (Layer → Transparency → Add Alpha Channel). Select the Lasso tool from the toolbox. Cut out your object with the Lasso Tool. Save the image as an PNG file. PNG files support transparency.
|Step 3: Import in Inkscape|
Import the PNG file in Inkscape (File → Import). Create a transparent square. Select both the square and the object and convert to a pattern (Object → Pattern → Objects to Pattern).
|Step 4: Choose the Node Tool from the toolbox.|
Duplicate the pattern (Edit → Duplicate) and choose the Node Tool from the toolbox. In the upper right corner of your pattern a small square with a cross inside will appear .
|Step 5: Have a look at the different options.|
Click and drag the square with the mouse cursor. In this way the pattern can be shifted in the field. The great thing about this tool is that you can drag the pattern to a new position. And although the pattern is now cut by the edges of your square, you're still creating a seamless repeating pattern.
|Step 6: Shift the pattern into a new position.|
Shift the pattern into a new position by using the Node tool.
|Step 7: Send to the back.|
Select the pattern. Send to the back (Object → Lower to bottom).
|Step 8: Repeat steps 4, 5, 6 and 7.|

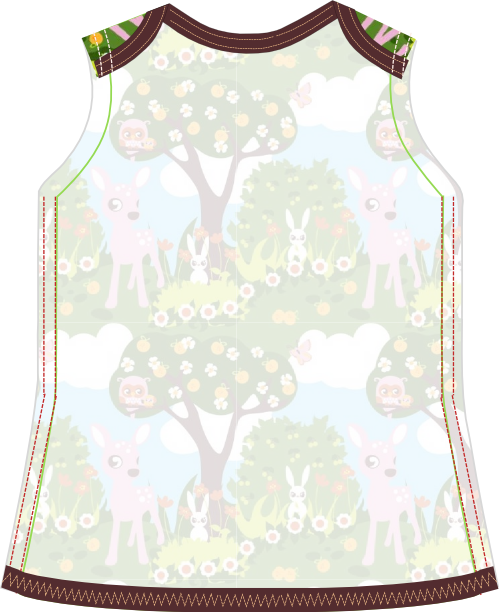

To make this pattern, I duplicated and shifted the pattern three times. I used all four options, shown in step five, to make this pattern.
Select all layers and convert to pattern. (Object → Pattern → Objects to Pattern)
|Step 10: Meetlat toevoegen.|
Unfortunately Inkscape does not yet have a dedicated Measure tool. Therefore I made my own Measure tool to use with Inkscape. You can download the yardstick here.
Use the yardstick to create a square with the same dimensions as the fabric of your choice. Select the square and open the Fill and Stroke Menu (Shift+Ctrl+F). Choose Pattern and choose the new pattern you just created.
|Step 11: Export bitmap.|

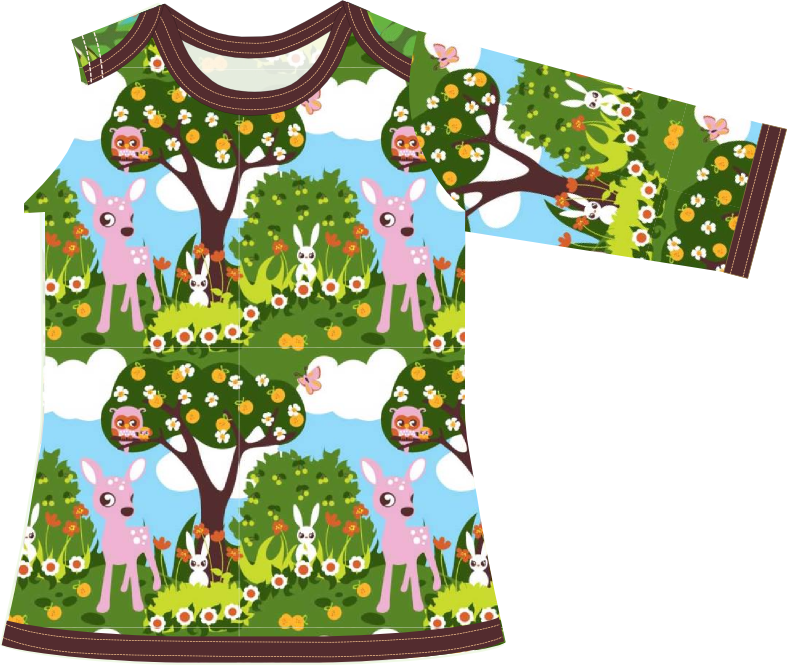

In this example I added a square with a matching colour to use as a neckband. When your design is ready, remove the yardstick. Select both squares. Export the image to PNG with resolution 180 dpi (File → Export Bitmap). To reduce the size of the file, open the PNG file in Gimp and save as a JPG file.
